KECK Optics - PRECISION 34 12-60x60 SFP IR - SF11 RETICLE
KECK OPTICS

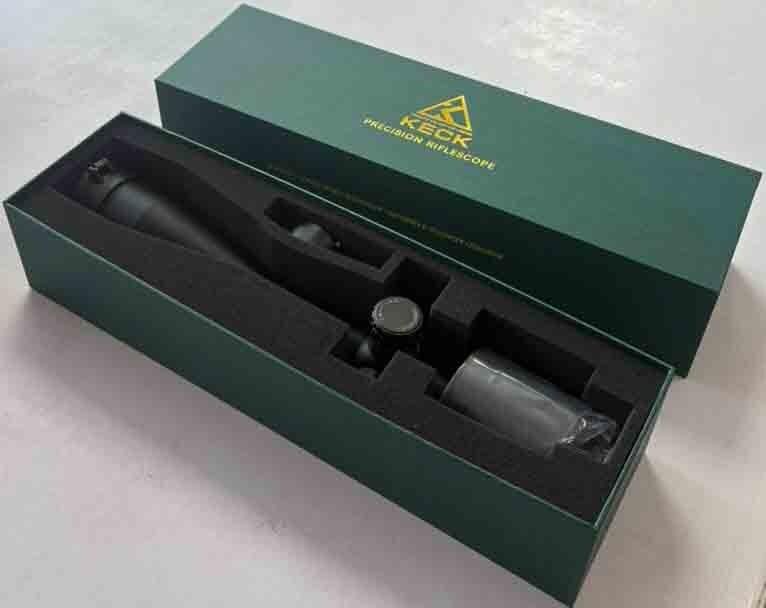

Box contains: Scope, 3 inch Sunshade, Flip Up lens covers, and instructions.
The Precision 34 12-60×60 SFPIR rifle scope is designed for use at Medium / High powers for Precision and Long range shooting. It is ideal for disciplines such as bench rest where magnifications of 35-50 X are commonly used. At lower powers, edge shadowing can occur when elevation / windage adjustments move the light path from the optical zero – see below for more details.
HD 12-60×60 SFP IR
G341260BS
RRP £329.00
Key Features:
Magnification Range: Offers a 12x to 60x magnification range, ideal for bench rest and mid-to-long-range shooting needs.
Objective Lens Diameter: The large 60 mm objective lens ensures a bright and clear field of view in various lighting conditions.
Second Focal Plane (SFP) Design: The reticle is positioned on the second focal plane, so its size remains consistent as magnification changes, allowing precise aiming at different magnifications.
Illuminated Reticle (IR): Equipped with a built-in adjustable brightness reticle illumination system, providing clear aiming in low-light environments.
34mm Tube Diameter: The 34mm tube design offers a larger adjustment range and greater strength, making it suitable for various harsh environments.
HD Optical System: Uses high-quality optical glass and fully multi-coated lenses for superior image clarity and color accuracy, achieving over 90% light transmission.
Durable Construction: Made from rugged aircraft-grade aluminium, it is waterproof, fog-proof, and shockproof, adaptable to all types of harsh environments.
Watch a Review:
12-60×60 SFP IR
G341260BS
Magnification: 12-60x
Scope Tube Diameter: 34mm
Lens Coating:fully green multi coated

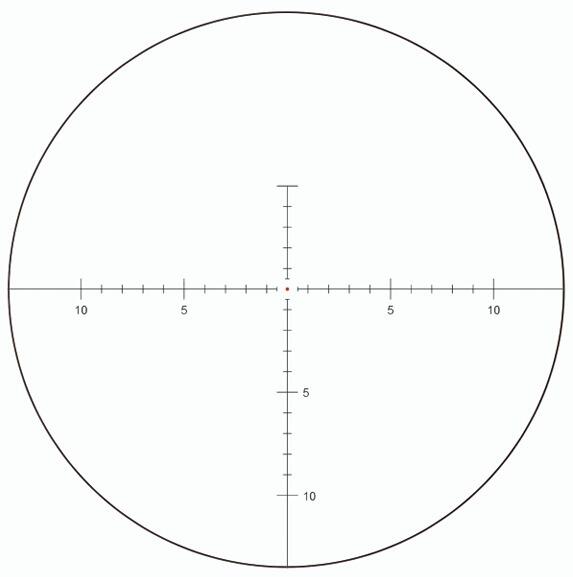

Reticle Type: Etched SFP- SF11
Ocular Lens Diameter: 35mm
Objective Lens Diameter: 60mm
Exterior Finish: Matte Black
Mounting Length: 185 mm
Objective/Field of View /（100yds）: 9.15-1.83 feet @100 yards
Exit Pupil: 3.5-1.0mm
Eye Relief: 96-95mm / 3.8-3.7″
Diopter Adjustment: ±2.0

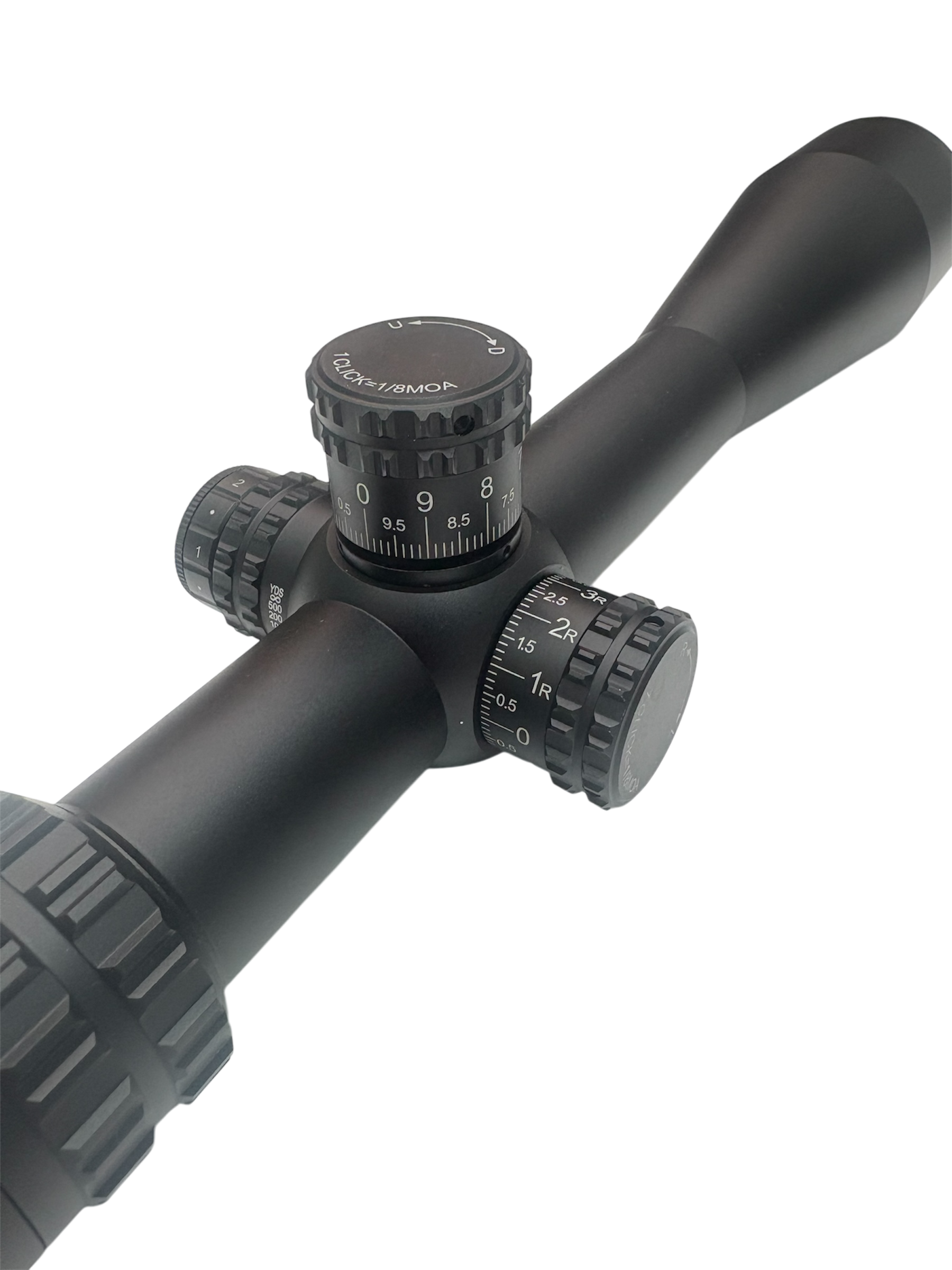

Adjustment Click Value: 1/8 MOA ( 10 MOA / Revolution)
Max. elevation adjustment range: 40 MOA
Max. windage adjustment range: : 40 MOA
Parallax correction(yds): 10yds-∞
Length: 425mm / 16.7″
Weight: 940g / 33.2 oz
Optical Limitations – Edge Shadow / Vignetting.
Elevation / Windage Adjustment limitations:
12X – 4.1 MOA
15X – 7.7 MOA
20X – 15.1 MOA
Solutions:
- Mechanically zero scope using adjustable mounts / inclined rails to zero scope as much as possible without turret adjustments
- Increase Magnification – above 20X the effects will not be seen.
