KECK Optics - PRECISION ED 2-10x32 FFP IR
KECK OPTICS
BENCH REST | FIELD TARGET (FT) | HUNTER FIELD TARGET (HFT)* l HUNTING l GENERAL TARGET | LONG RANGE
ED 2-10x32 FFP IR
First Focal Plane (FFP) Design: The reticle is positioned on the first focal plane, scaling proportionally with magnification, allowing for precise range estimation and ballistic compensation at any magnification level.
ED Optical System: Uses high-quality optical glass and fully multi-coated lenses, delivering exceptional image clarity and color fidelity, achieving over 91% light transmission.
Compact Design: With a compact length of approximately 252 mm, and weight around 587 grams, it is easy to carry and mount, suitable for a variety of firearm platforms

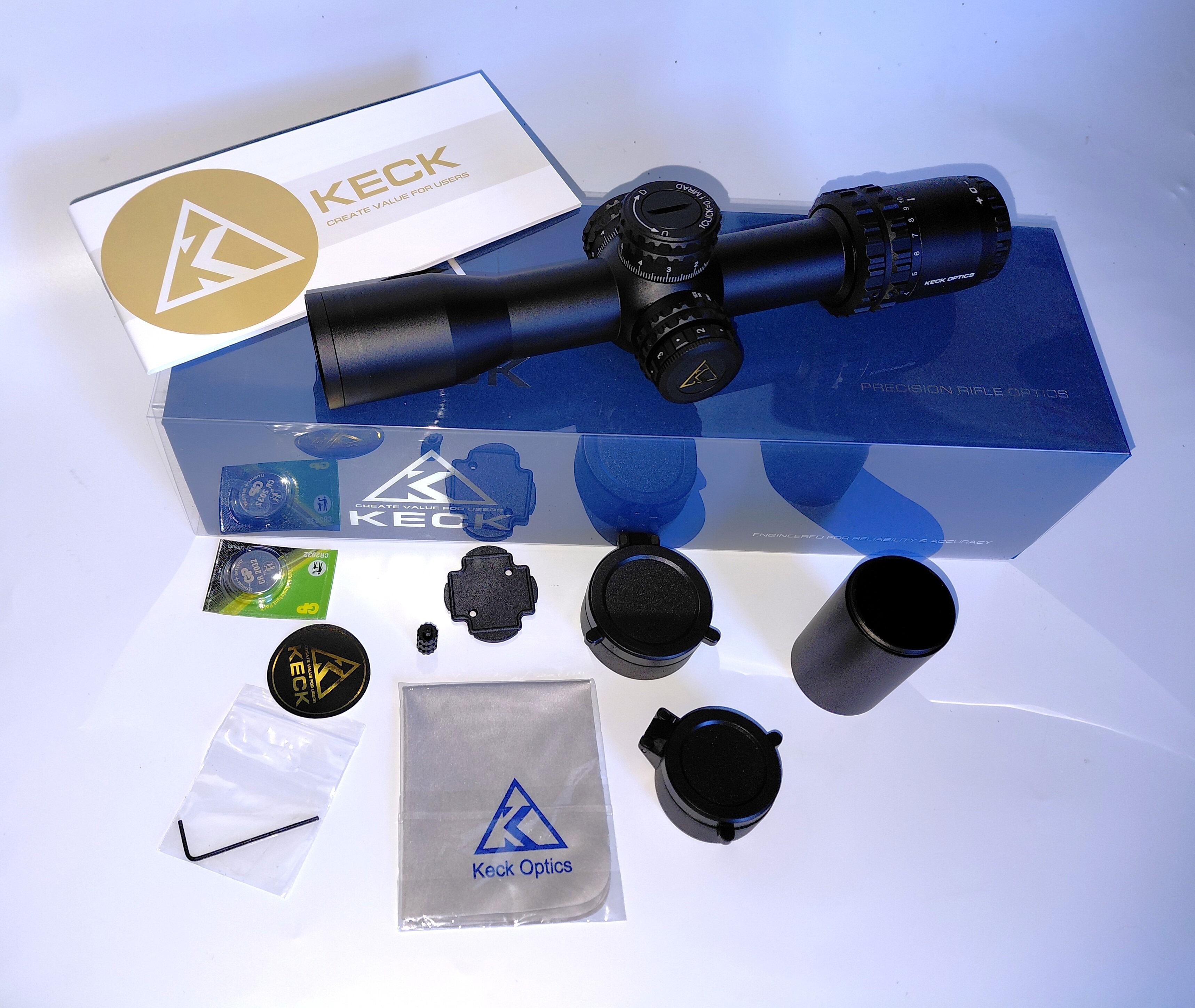

In the Box: Scope, 2.5 inch (63 mm) sunshade, screw in throw lever, plastic cap tool, lens cloth and instructions.
PRECISION ED
2-10x32 FFPIR
Model: ED30210
Magnification: 2-10 x
Scope Tube Diameter: 30mm
Lens Coating: Green multi coated

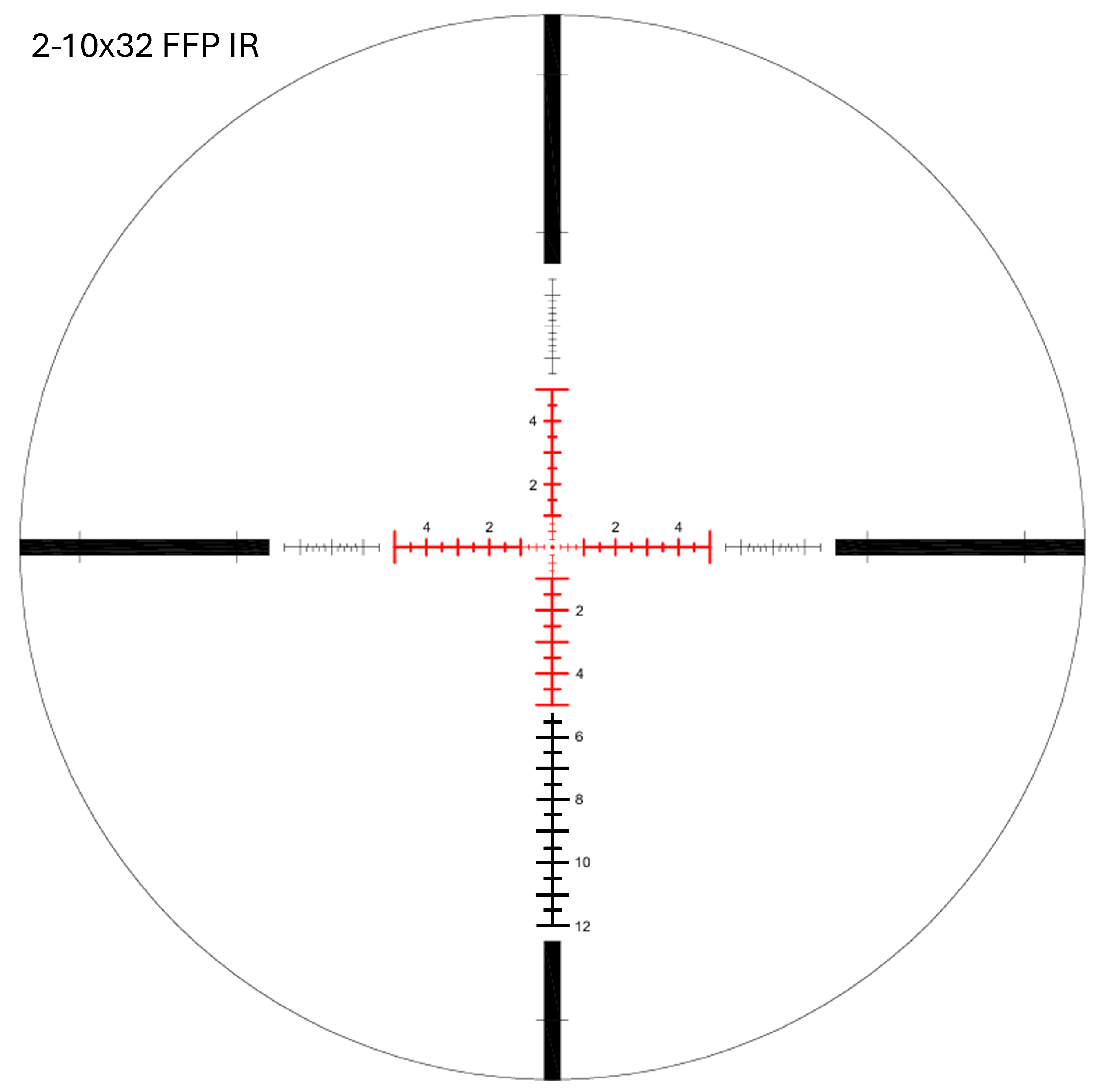

Reticle Type: Etched KS1 First Focal Plane
Ocular Lens Diameter：36 mm
Objective Lens Diameter：32 mm
Exterior Finish: Matte Black
Mounting Length: 124 mm
Objective/Field of View/ 100 yds: 62.9 -12.6 feet （12°-2.4°）
Exit Pupil: 12 mm – 3.2 mm
Eye Relief: 90mm-85mm
Diopter Adjustment: ±2.5
Adjustment Click Value: 0.1 MRAD
Max. elevation adjustment range: 34 MRAD
Max. windage adjustment range: 29 MRAD
Parallax correction: <10yds-∞
Length: 9.92″, (252.0mm)
Weight: 587 grams / 20.7oz
