The Precision HD model with 4X Zoom. Features include: Zero-stop elevation turret with large range of adjustment. High Definition (HD) glass and anti-reflective coatings achieve high level of light transmission and maintain edge clarity at high magnifications.

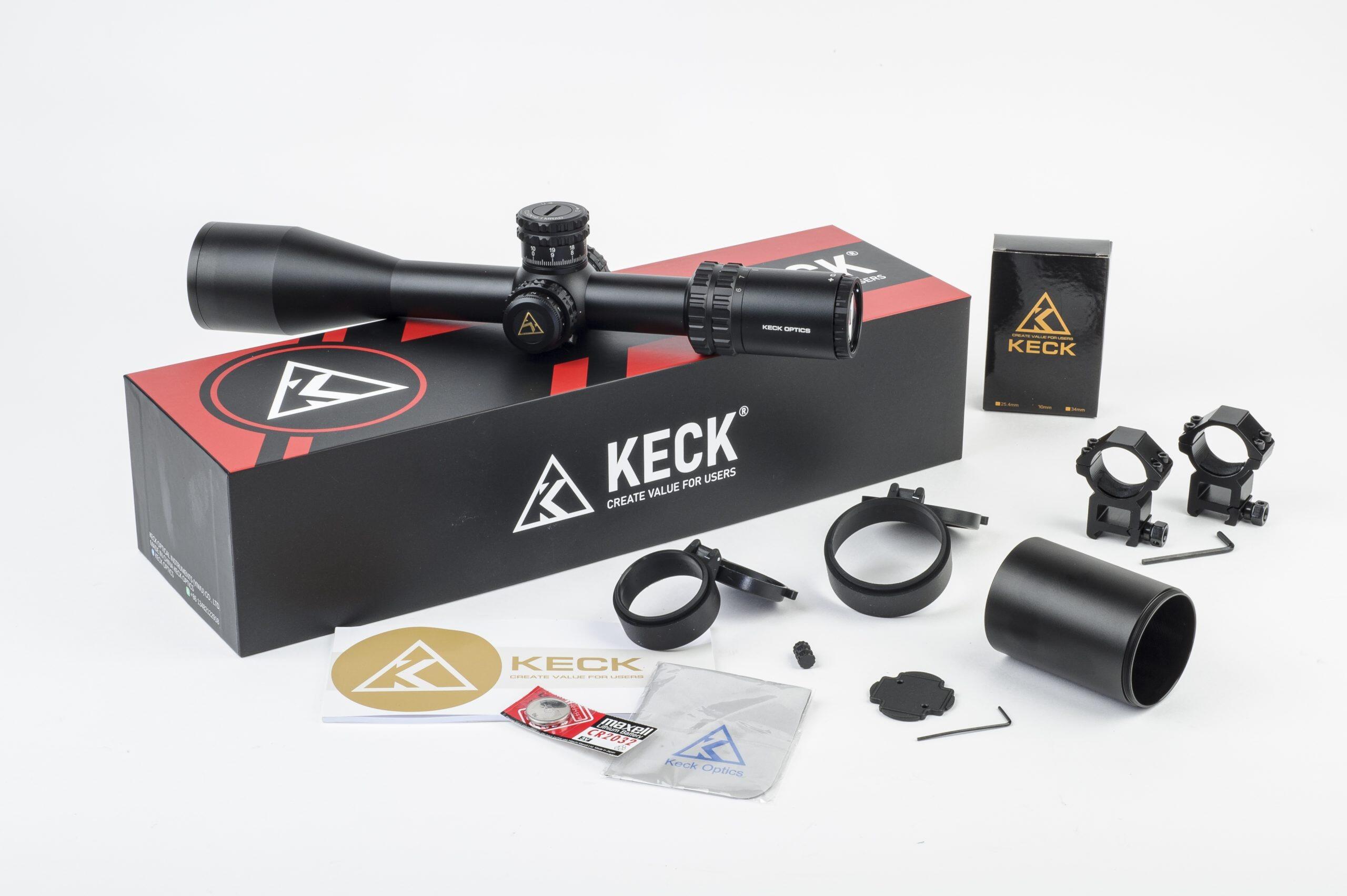

Box contains: Scope, 3 inch Sunshade, Flip Up lens covers, Mounts and instructions.
Magnification Range: Offers a 6x to 24x magnification range, suitable for mid-to-long-range shooting.
Objective Lens Diameter: The 50mm objective lens ensures a bright and clear field of view in various lighting conditions.
First Focal Plane (FFP) Design: The reticle is positioned on the first focal plane, scaling proportionally with magnification, allowing accurate range estimation and ballistic compensation at any magnification level.
Warranty: Lifetime warranty for purchaser.
HD 6-24×50 FFP IR
Model: HD30624
Magnification: 6-24X

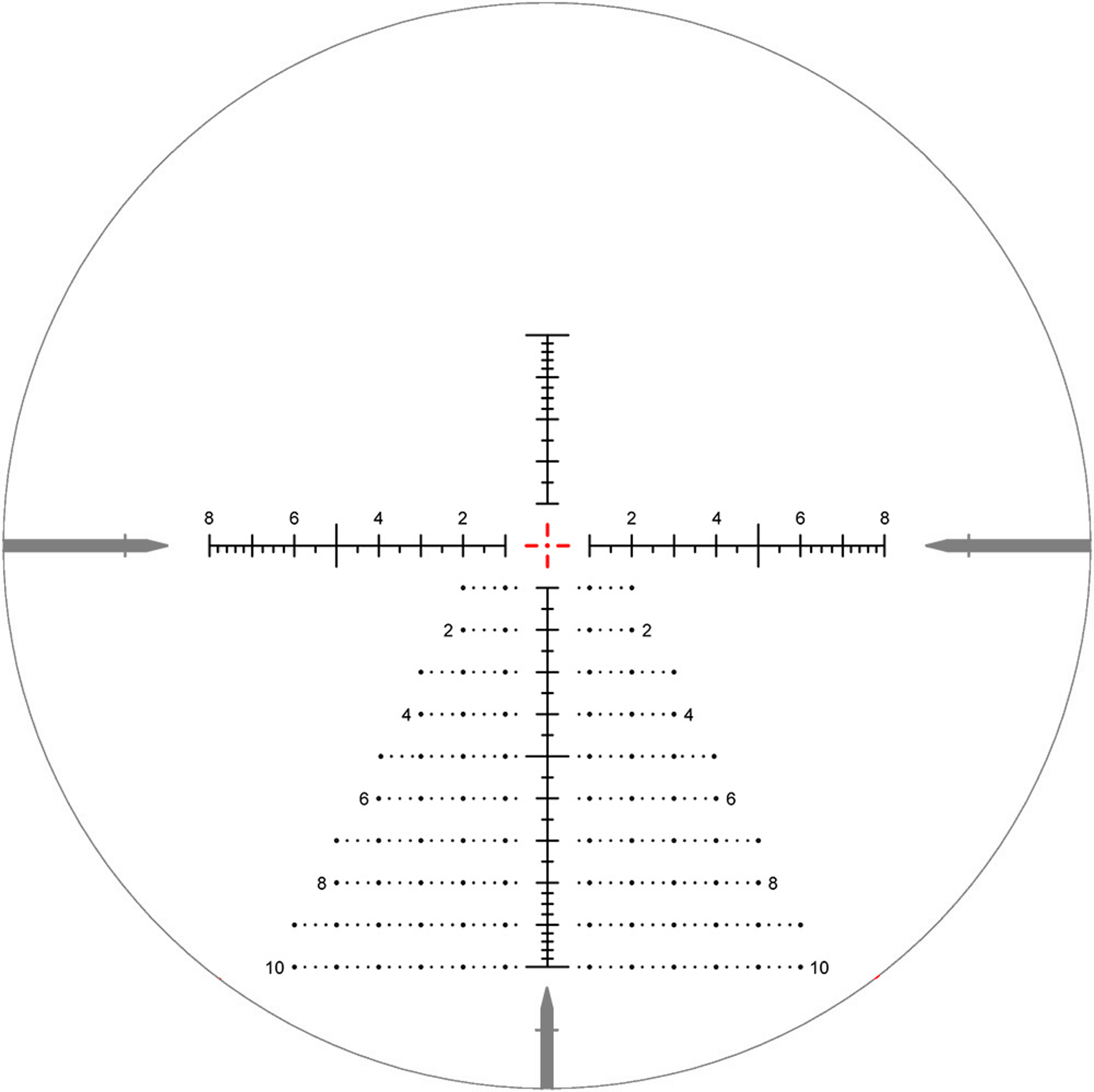

Reticle: Etched / First Focal
Scope Tube Diameter: 30mm
Ocular Lens Diameter：35mm
Objective Lens Diameter: 50mm
Exterior Finish: Matte Black
Mounting Length：155mm
Objective/Field of View/（100yds）: 18.9-4.7 feet （3.6°-0.9°）
Exit Pupil:10mm – 2mm
Eye Relief: 3.78″- 3.74″,( 96mm-95mm)
Diopter Adjustment: ±2.0
Adjustment Click Value：0.1 MRAD (10 MRAD / Revolution)
Max. elevation adjustment range: ±13 MRAD (26 MRAD/ 90 MOA)
Max. windage adjustment range: 17.5 MRAD ( 60 MOA)
Parallax correction(yds): 10yds-∞
Length: 13.9″, (352.0mm)
Weight: 795 grams / 28 oz
